  • Debugging Kromrey-Converter

    Good Day

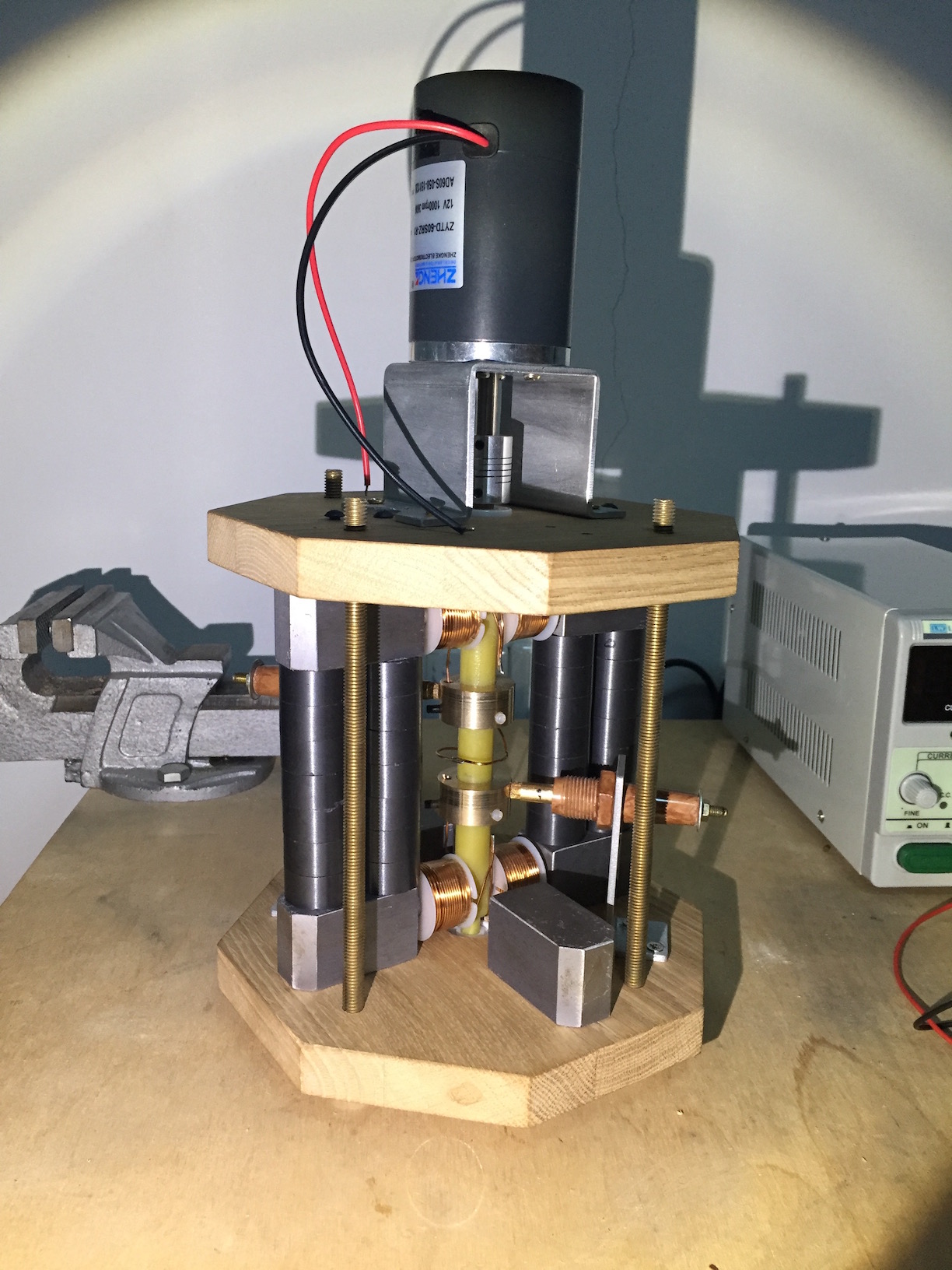

    After careful build of a Bedini-Style-Kromrey-Converter (see photo) it does not output a single volt when running (over 800 rpm).
    Wonder whether anybody can help with hints to debug. Don't need a good performance machine, just one that works a bit to study it.
