  • Gabriel's SS SSG

    Hi guys,

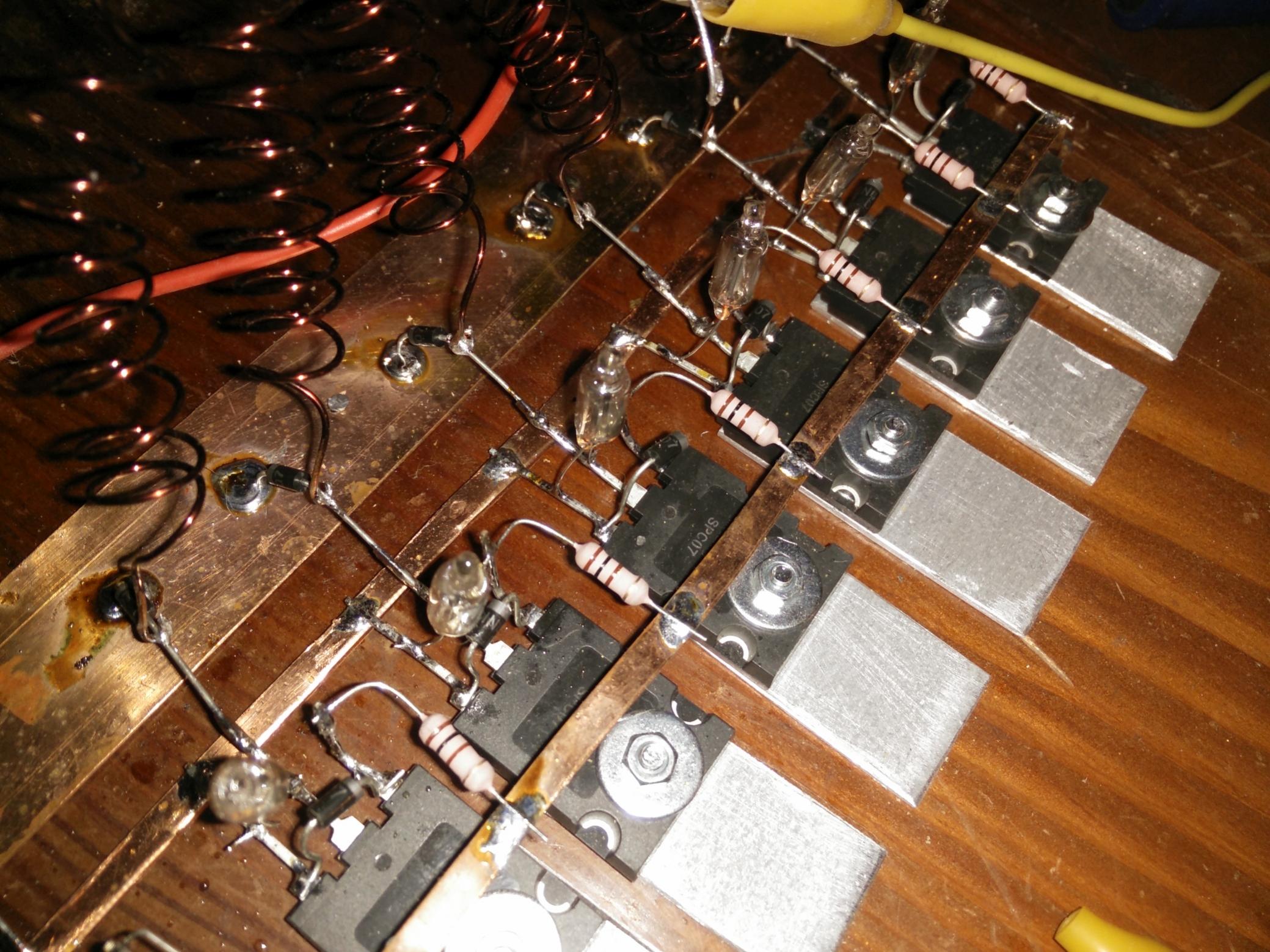

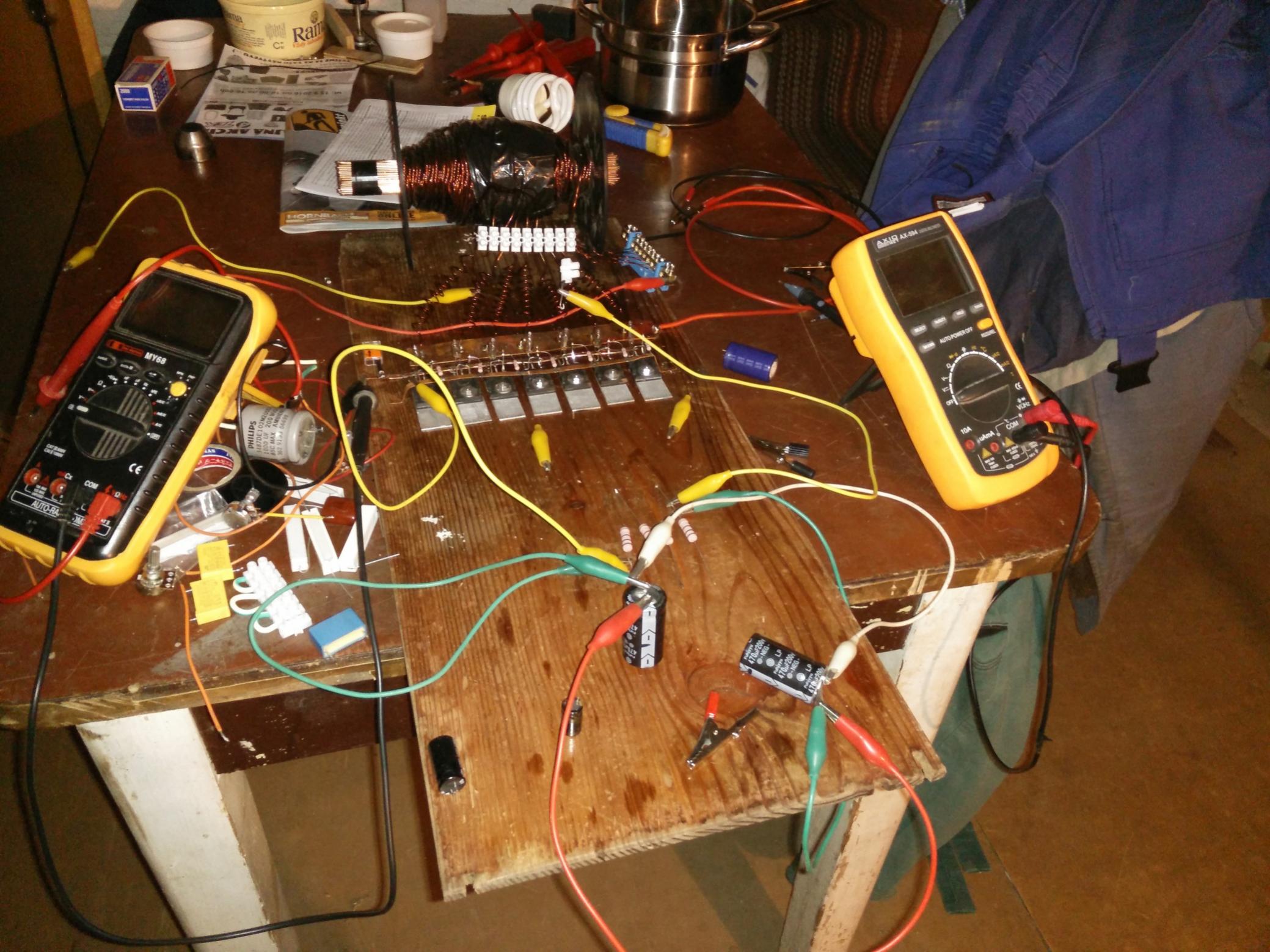

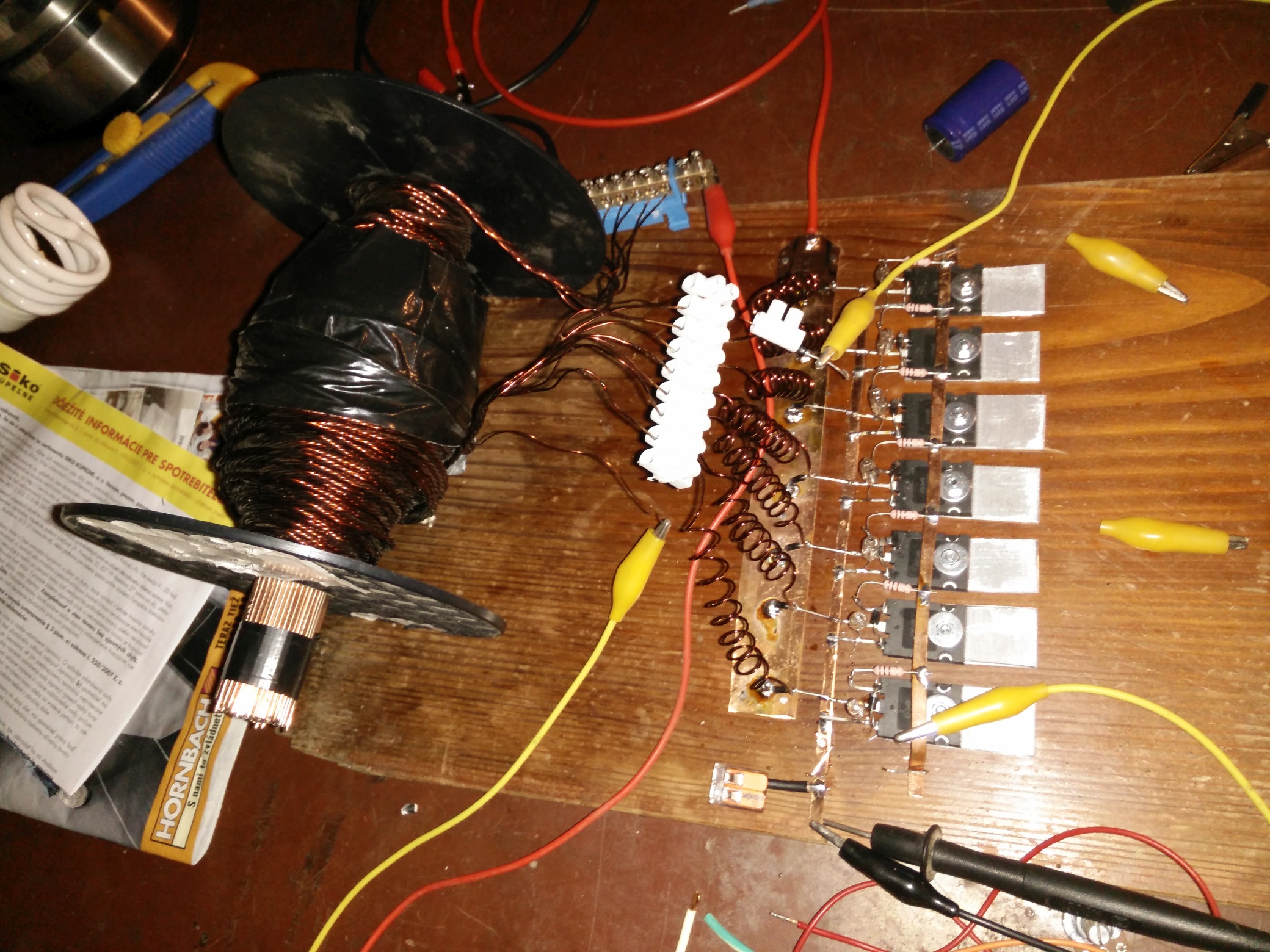

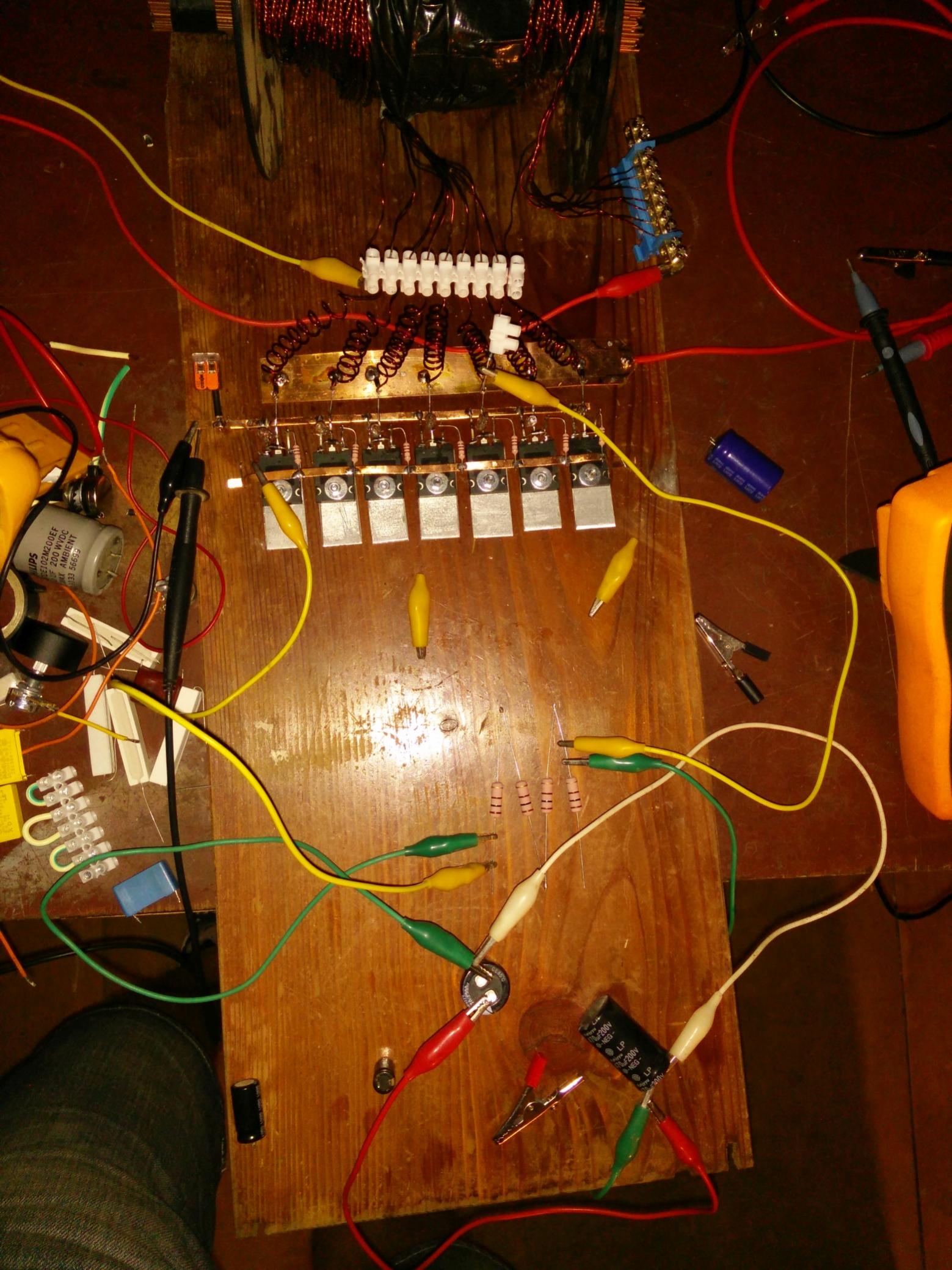

    so this is my SolidState SG
    Click image for larger version

Name:	IMG_20160920_204452-smaller.jpg
Views:	1
Size:	363.8 KB
ID:	51340

    Click image for larger version

Name:	IMG_20160920_204509-smaller.jpg
Views:	1
Size:	367.2 KB
ID:	51341

    Click image for larger version

Name:	IMG_20160920_204635-smaller.jpg
Views:	1
Size:	421.5 KB
ID:	51342

    Click image for larger version

Name:	IMG_20160920_204549-smaller.jpg
Views:	1
Size:	961.6 KB
ID:	51343

    wire lenght is the recommended lenght of the wheel version
    AWG ?!
    7x MJL21994
    100ohm resistor on the base of each MJL
    1N4007 diodes

    converted to CPD (cap+pot+diode)
    In my case I changed the potentiometer to fixed resistors in series because I was running tests with higher uF caps which were killing my small pots.

    I used two 12V 7Ah batteries. Both batteries capacity was measured with CBA IV. Input battery was fully charged with RC1-AU and the output was dischgarged to 10.50V with CBA IV. I ran the test for 3 hours or the input V dropped to 12.06V (50%). Then I discharged the output with CBA to measure how much charged. I measured the input mA with digital multimeter , there might be slight deviation when the DMM was and was not in the circuit.

    1. TEST
    runtime 3hours
    1x 330uF e.l. cap
    300Ohm 5W resistance across the cap (100+100+100)
    input ~600(650)mA

    after 180mins
    input battery - 12.05
    output battery - 12.42 after 50min rest 12.01

    measured capacity - 1.74Ah

    2. TEST
    1x 470uF 50V e.l.cap
    300Ohm 5W resistance across the cap (100+100+100)
    input ~600mA

    after 180mins
    input battery - 12.06V
    output battery - 12.44V after 1+hours rest 11,94V

    measured capacity - 1.64Ah

    3. TEST
    2x 470uF 50V (940uF total) e.l. caps
    300Ohm 5W resistance across the cap (100+100+100)
    input ~600mA

    after 180mins
    input batt 12.09V
    output batt 12.39V after 1+hours REST 11.85V

    measured capacity - 1.43Ah


    The higher the input current the bigger the pulse/spike. With bigger pulse you can charge bigger batteries or really push small ones. There also comes the speed or frequency of the pulses. At 1.5A (2200uF) the 7Ah batt went above 14V very quickly while boiling the electrolyte. WIth 600mA input there was no boiling but slowly climbing Voltage on the output i.e. the battery could absorb the pulse without boiling itself (wasting the energy). Every battery has it's pace or speed of charging.

    If I pulled the iron core out it stopped working correctly. I was listening to the pops on the standard battery operated AM radio.

    Any comments or suggestions appreciated.
    Last edited by gabiX87; 09-26-2016, 01:18 PM. Reason: updates and error corrections
    my work here :
    https://plus.google.com/u/0/photos/+...22301631177969

  • #2
    Hi Gabriel, I think the pictures did not load properly? Also I would not discharge the batteries down to 10.50 volts...you may damage them. 12volts would be safer. Maybe someone else would say differently? And for a 7 transistor coil I would think that 7ah batteries are too small. Maybe 30aH would be better.
    The C20(safe limit) rate of charge and discharge for 7aH batteries = 7Ah/ C20 = 350mA load for 20 hours
    So even putting in 600mA is too high for such a small battery to safely handle.
    You do not want to charge with current but with radiant. Otherwise we may as well use a conventional charger.
    7aH batts are more suited to a coil with only 2 wires at 120feet...not a beast with 8 wires.
    Blessings

    Comment


    • #3
      Also I would not discharge the batteries down to 10.50 volts...you may damage them. 12volts would be safer. Maybe someone else would say differently?

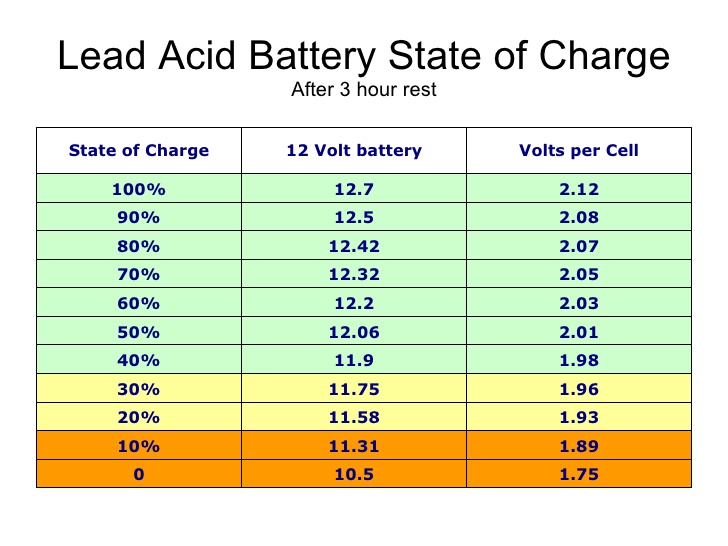

      Yes I know. But the fact is I have done this many many times rejuvenating batteries , discharging them to 10.50 as long as I charged them back with a TeslaCharger. Even the CBA software suggest the cut-off voltage at 10.50V

      Click image for larger version

Name:	240.jpg
Views:	1
Size:	72.7 KB
ID:	49004

      The C20(safe limit) rate of charge and discharge for 7aH batteries = 7Ah/ C20 = 350mA load for 20 hours

      Yes I know. I was tunning and testing the circuit. C20 wasn't a concern at this time.

      So even putting in 600mA is too high for such a small battery to safely handle.
      I don't understand. You mean on the charge battery ? Where do you see 600mA to the output battery ? Please double-check. I do not have a scope to measure the output spike. So that data is missing. Radiant is basicly the 'spike' aka 'high voltage transient' is it not the same on the solid state ?
      Last edited by gabiX87; 09-26-2016, 12:09 PM.
      my work here :
      https://plus.google.com/u/0/photos/+...22301631177969

      Comment


      • #4
        Originally posted by gabiX87 View Post
        Hi guys,

        so this is my SolidState SG
        [ATTACH=CONFIG]5530[/ATTACH]

        [ATTACH=CONFIG]5531[/ATTACH]

        [ATTACH=CONFIG]5532[/ATTACH]

        [ATTACH=CONFIG]5533[/ATTACH]

        wire lenght is the recommended lenght of the wheel version
        AWG ?!
        7x MJL21994
        100ohm resistor on the base of each MJL
        1N4007 diodes

        converted to CPD (cap+pot+diode)
        In my case I changed the potentiometer to fixed resistors in series because I was running tests with higher uF caps which were killing my small pots.

        I used two 12V 7Ah batteries. Both batteries capacity was measured with CBA IV. Input battery was fully charged with RC1-AU and the output was dischgarged to 10.50V with CBA IV. I ran the test for 3 hours or the input V dropped to 12.06V (50%). Then I discharged the output with CBA to measure how much charged. I measured the input mA with digital multimeter , there might be slight deviation when the DMM was and was not in the circuit.

        1. TEST
        runtime 3hours
        1x 330uF e.l. cap
        300Ohm 5W resistance across the cap (100+100+100)
        input ~600(650)mA

        after 180mins
        input battery - 12.05
        output battery - 12.42 after 50min rest 12.01

        measured capacity - 1.74Ah

        2. TEST
        1x 470uF 50V e.l.cap
        300Ohm 5W resistance across the cap (100+100+100)
        input ~600mA

        after 180mins
        input battery - 12.06V
        output battery - 12.44V after 1+hours rest 11,94V

        measured capacity - 1.64Ah

        3. TEST
        2x 470uF 50V (940uF total) e.l. caps
        300Ohm 5W resistance across the cap (100+100+100)
        input ~600mA

        after 180mins
        input batt 12.09V
        output batt 12.39V after 1+hours REST 11.85V

        measured capacity - 1.43Ah


        The higher the input current the bigger the pulse/spike. With bigger pulse you can charge bigger batteries or really push small ones. There also comes the speed or frequency of the pulses. At 1.5A (2200uF) the 7Ah batt went above 14V very quickly while boiling the electrolyte. WIth 600mA input there was no boiling but slowly climbing Voltage on the output i.e. the battery could absorb the pulse without boiling itself (wasting the energy). Every battery has it's pace or speed of charging.

        If I pulled the iron core out it stopped working correctly. I was listening to the pops on the standard battery operated AM radio.

        Any comments or suggestions appreciated.
        nice. its really appreciating. I would like to have a try on this too

        Comment


        • #5
          Originally posted by gabiX87 View Post
          Also I would not discharge the batteries down to 10.50 volts...you may damage them. 12volts would be safer. Maybe someone else would say differently?

          Yes I know. But the fact is I have done this many many times rejuvenating batteries , discharging them to 10.50 as long as I charged them back with a TeslaCharger. Even the CBA software suggest the cut-off voltage at 10.50V

          [ATTACH=CONFIG]5529[/ATTACH]

          The C20(safe limit) rate of charge and discharge for 7aH batteries = 7Ah/ C20 = 350mA load for 20 hours

          Yes I know. I was tunning and testing the circuit. C20 wasn't a concern at this time.

          So even putting in 600mA is too high for such a small battery to safely handle.
          I don't understand. You mean on the charge battery ? Where do you see 600mA to the output battery ? Please double-check. I do not have a scope to measure the output spike. So that data is missing. Radiant is basicly the 'spike' aka 'high voltage transient' is it not the same on the solid state ?
          impressive.. what you do with the data missing exactly??

          Comment


          • #6
            Originally posted by Beth641 View Post
            impressive.. what you do with the data missing exactly??
            I meant that I do not have a osciloscope to measure , actually see , the frequency and voltage of the spike with different setups (caps,pots or resistors).
            my work here :
            https://plus.google.com/u/0/photos/+...22301631177969

            Comment


            • #7
              Originally posted by gabiX87 View Post
              I meant that I do not have a osciloscope to measure , actually see , the frequency and voltage of the spike with different setups (caps,pots or resistors).
              ok.. thanks for help

              Comment


              • #8
                nice thread.. thanks for posting here..
