Teslagenx.com circuit boards

[Tom C]

Hi everyone,

Just an update. we are very close to our first product, which is a 4 transistor SG board. it wll be available soon. check out the website for a more complete description.

we will not be taking pre orders and we wont take your money unless we can ship it!! please come back here after checking out the very rudimenatary home page and let us know what else you may be interested in. we will do our best to provide for you what we can.

Tom C

[John_Koorn]

New SSG Kit Available Soon!

Hi All,

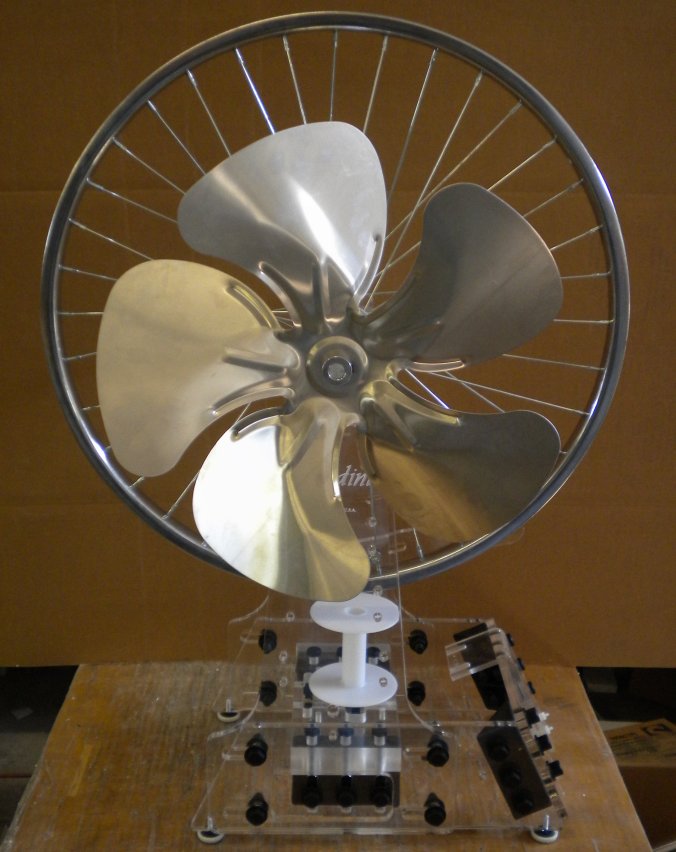

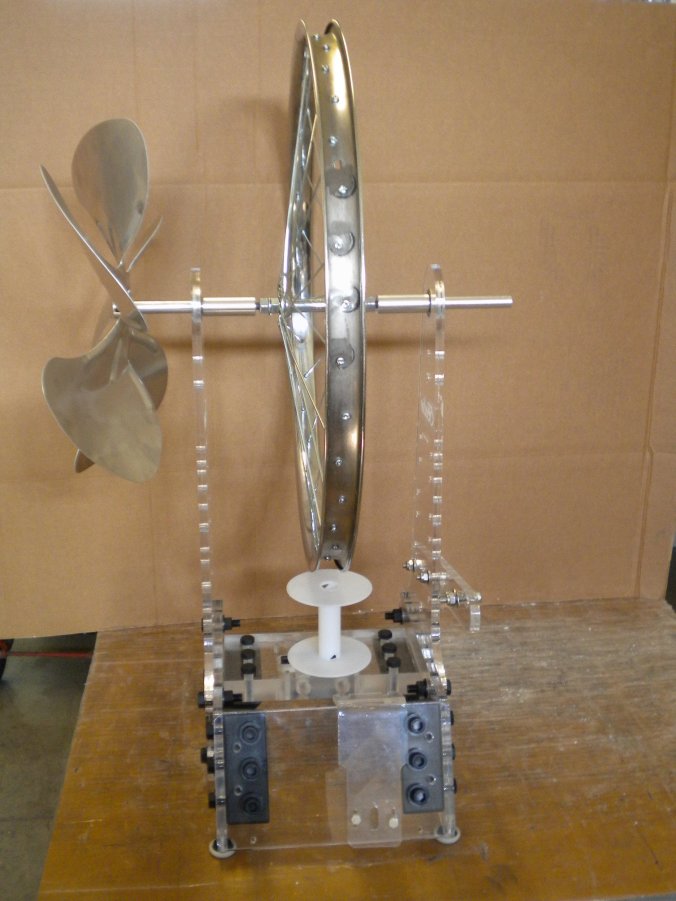

Here's a couple of pics of the new Bedini Monopole SSG That will be available shortly. Final details of the coil and circuit board are just being worked out but John Bedini has confirmed that this will be a super pole magnet configuration.

We are also finalizing pricing details and will have that shortly as well.

John will be making a video when he builds this so everyone can see how to do it. We will also be posting the charts on how the machine performs so you will know exactly what you are getting when you buy one.

Again, we won't be taking anyone's money until they are ready to ship. Stay tuned for further details.


John K.

[Faraday88]

Hi Tom C,

Does the Super-pole comprise of two N-N Magnets squeezed together..?
rgds,
Faraday88.

[John_Koorn]

Hi Tom C,

Does the Super-pole comprise of two N-N Magnets squeezed together..?
rgds,
Faraday88.

Faraday88, yes that's right.

John K.

[Faraday88]

Hi Tom C,
Does the 4 transistor version function same as the original SSG..?
or is Cole switching involved.
thanks in advance for your answer.
rgds,
Faraday88.

[Tom C]

its a standard SG circuit all sharing a trigger. standard multicoil circuit. Half and Full Bedini Cole switch boards are on the Drafting table.

Tom C

[greghaa]

Hey guys

Curious about the boards you will be producing. Will you also provide the schematic for people who would like to etch their own boards?

Thanks

--

[Robert Darrah]

Hi Tom,

I'd like to see a ramped up version of the crystal light, something more than just for an emergency light. I'm thinking a light that puts out enough light that you could comfortably use it for reading or as a work light. You know, a practical application.

Robert

[Tom C]

no, these board are proprietary to us, the designs are property of Telsagenx and John Bedini. the circuit itself is not proprietary, feel free to design and etch your own, you should not sell them with out permission from JB and Energenx.

Tom C

[Tom C]

Hi Tom,

I'd like to see a ramped up version of the crystal light, something more than just for an emergency light. I'm thinking a light that puts out enough light that you could comfortably use it for reading or as a work light. You know, a practical application.

Robert

the current combination of the crystal cell, oscillator, and 5 superbright led' s puts out enough light for what you need to read. build yourself a reflector and you can greatly increase its output t light a whole workbench. it is more of a matter of your imagination

Tom C.

[greghaa]

no, these board are proprietary to us, the designs are property of Telsagenx and John Bedini. the circuit itself is not proprietary, feel free to design and etch your own, you should not sell them with out permission from JB and Energenx.

Tom C

I would never try to sell anything. I am just a tinkerer and was wondering. Etching boards is one of those things I mess around with.

[Tom C]

yes I understand greg, I did not expect you to, just trying to be very clear for everyone who reads the boards.

Tom C

[Faraday88]

its a standard SG circuit all sharing a trigger. standard multicoil circuit. Half and Full Bedini Cole switch boards are on the Drafting table.

Tom C

Hi Tom C,

Thanks for your quick response. i'm not clear on what you meant by a Drafting table though..!
could you please help me understand on this, will be great help.
thanks a million once again.
Rgds,
Faraday88.

[Tom C]

sorry faraday, they are being designed now.

Tom C

[Tom C]

Hi Everyone,

Here is the video for our first circuit board.

Tom C
