circuit to charge a battery

[ralphfields]

would you help about bedini cirguit...
I constructed one, but not charge the other batery... thanks very much
thanks very much
ralphfields

[Tom C]

Ralph,

need a whole lot more info and pictures if you want help.

Tom C

[ralphfields]

http://www.youtube.com/watch?v=IkOEqPW0ASY
Thanks very much, the link it's a video more the next information
Coil hits the transistor 80 turns 26 gauge enamelled wire
Primary Coil to the collector battery load 23 gauge enameled wire
Neodymium Magnets 4 d 5 x 2.5 x 1.2 cm
Connections on PCB as you can see in the video of 1.36 minutes
Any other information with pleasure
Thanks mr. Tom C
Ralph

[Ed_Morbus]

Ralphfields thanks for sharing your work

Use only Ferrite magnets

No neodymium to strong for bedini charger

[Tom C]

http://www.youtube.com/watch?v=IkOEqPW0ASY
Thanks very much, the link it's a video more the next information
Coil hits the transistor 80 turns 26 gauge enamelled wire
Primary Coil to the collector battery load 23 gauge enameled wire
Neodymium Magnets 4 d 5 x 2.5 x 1.2 cm
Connections on PCB as you can see in the video of 1.36 minutes
Any other information with pleasure
Thanks mr. Tom C
Ralph

this is not going to be a good SG .

1 use ceramics not neo
2 need a lot more turns on your coil for the electromagnet to function

Build it like JB has designed please you will be much happier.

where did you buy the circuit board from?

Tom C

[ralphfields]

Thanks by your information i ll do the change recomended
and i ll tell you the result
How or which is the original circuit of JBedini,
how many turns is the correct
How much cost a complete information ?

I live in the mountain and i need urgent a solution because
i not have electricy where i live.
My friend do the circuit board

thanks very much

[min2oly]

Thanks by your information i ll do the change recomended
and i ll tell you the result
How or which is the original circuit of JBedini,
how many turns is the correct
How much cost a complete information ?
I live in the mountain and i need urgent a solution because
i not have electricy where i live.

thanks very much

where did you buy the circuit board from?

[Tom C]

look here for all the components and the E-book on construction

www.teslagenx.com

Tom C

[Kiril_Kirilov]

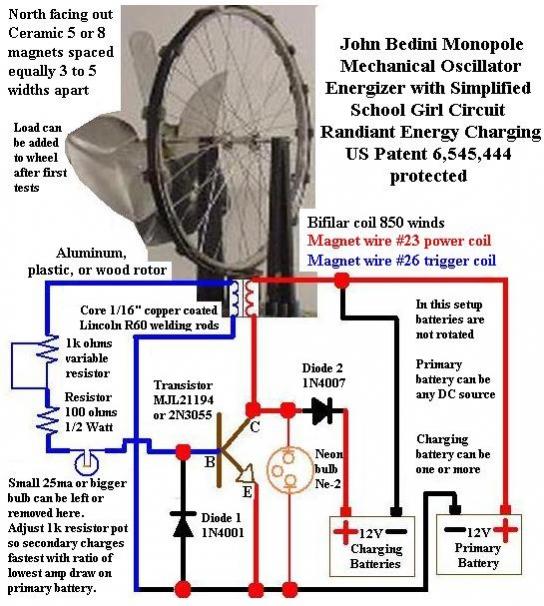

Bedini SSG schematic

...
1. How or which is the original circuit of JBedini...
2. how many turns is the correct
...

1. http://rpmgt.org/JoinBediniList.htm


2. Bifilar coil ~ 850 winds...

See the link for all the details, including videos

[John_Koorn]

1. http://rpmgt.org/JoinBediniList.htm
[ATTACH=CONFIG]3176[/ATTACH]

2. Bifilar coil ~ 850 winds...

See the link for all the details, including videos

They are the old instructions, which are now incorrect and out of date.

The latest instruction, endorsed by John Bedini can be found here: http://teslagenx.com/digital.html

John K.

[ralphfields]

My friend build the circuit board

[John_Koorn]

ralph, you need to secure the coil - not rubber bands.

is your friend selling the circuit boards?

John K.

[ralphfields]

I don´t , I´m going to ask to my friend.

[ralphfields]

I do not buy the circuit board, my friend do that!!
Today, I buy the complete intermediate handbook from Peter and Aaron,
We are going to build the option "The Capacitor Discharge using NPN Transistors",
and I have a questions.
It is the better option?
We use a horizontal aluminun bycicle rin, what will be the ceramic magnet size, for 800 wind coil?

[ralphfields]

I do not buy the circuit board, my friend do that!!
Today, I buy the complete intermediate handbook from Peter and Aaron,
We are going to build the option "The Capacitor Discharge using NPN Transistors",
and I have a questions.
It is the better option?
We use a horizontal aluminun bycicle rin, what will be the ceramic magnet size, for 800 wind coil?
