  • I have tested with bedini 3GT schematic
    wil or can you test also

    Comment

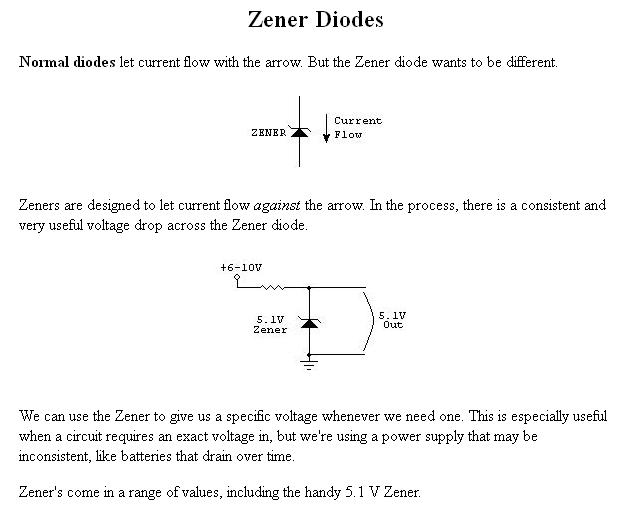

    • i have Zener informationClick image for larger version

Name:	Zener Diodes.JPG
Views:	1
Size:	41.1 KB
ID:	45962

      Comment


      • Pat,
        The imbedded videos are both disabled.
        Would you mind posting the address direct to the you tube video.
        Thanks
        James

        Comment


        • Clik on youtube icon right for me working

          Comment


          • Originally posted by Ed_Morbus View Post
            Clik on youtube icon right for me working
            Hi ED_ ...

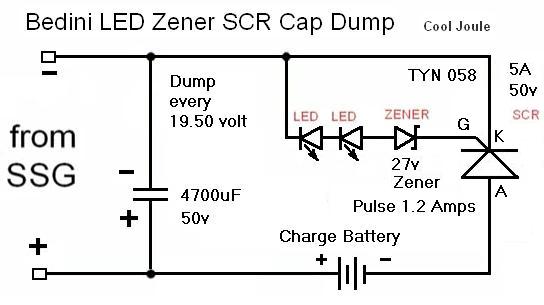

            i did not say that your circuit is not working. I said your schematic is wrong and the schematic in your youtube video is not the same as you posted here! AND it is also
            WRONG because your SCR is in wrong direction

            Comment


            • Ok thanks
              youtube video ? Cool Joule is Patrick
              I have corrected SCR is this good circuit
              Attached Files
              Last edited by Ed_Morbus; 02-01-2014, 12:56 PM.

              Comment

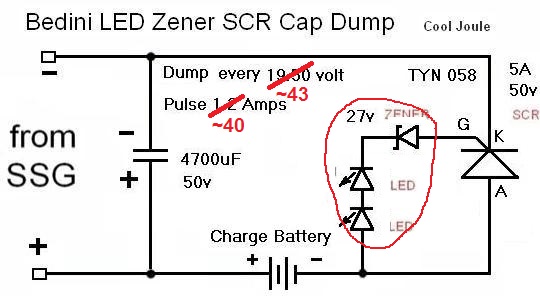

              • Put all diodes in opposite direction and connect the LED anode to the minus of the battery (SCR anode).

                Comment


                • Dieter can you give an example in draft
                  schematics
                  thank you for your help

                  Comment


                  • Originally posted by Ed_Morbus View Post
                    Ok thanks
                    youtube video ? Cool Joule is Patrick
                    I have corrected[ATTACH=CONFIG]2890[/ATTACH] SCR is this good circuit
                    Hi ED
                    thanks for sharing

                    totoalas

                    Comment


                    • This is an excellent example of do as i do not as i say :-)
                      the do is the vid - easy to see how things are hooked up and it is working.
                      the say is the schematic.
                      cheers,
                      Patrick

                      Comment


                      • Hi ED,

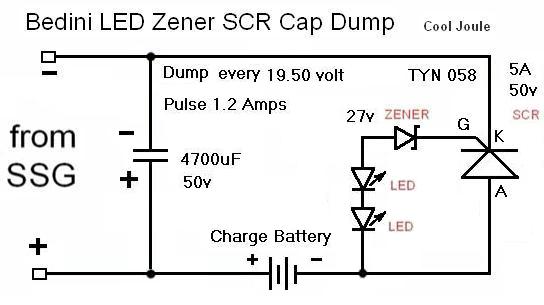

                        see your schematic here corrected. If you want (the recommended) pulse voltage 24Volts,
                        use a 5.1 Zener and bright white LEDs. Click image for larger version

Name:	ED_Morbus_CapDump.jpg
Views:	1
Size:	47.6 KB
ID:	45993


                        Originally posted by Ed_Morbus View Post
                        Dieter can you give an example in draft
                        schematics
                        thank you for your help

                        Comment


                        • Dieter thank you

                          Comment


                          • This will run and run and run and run.....

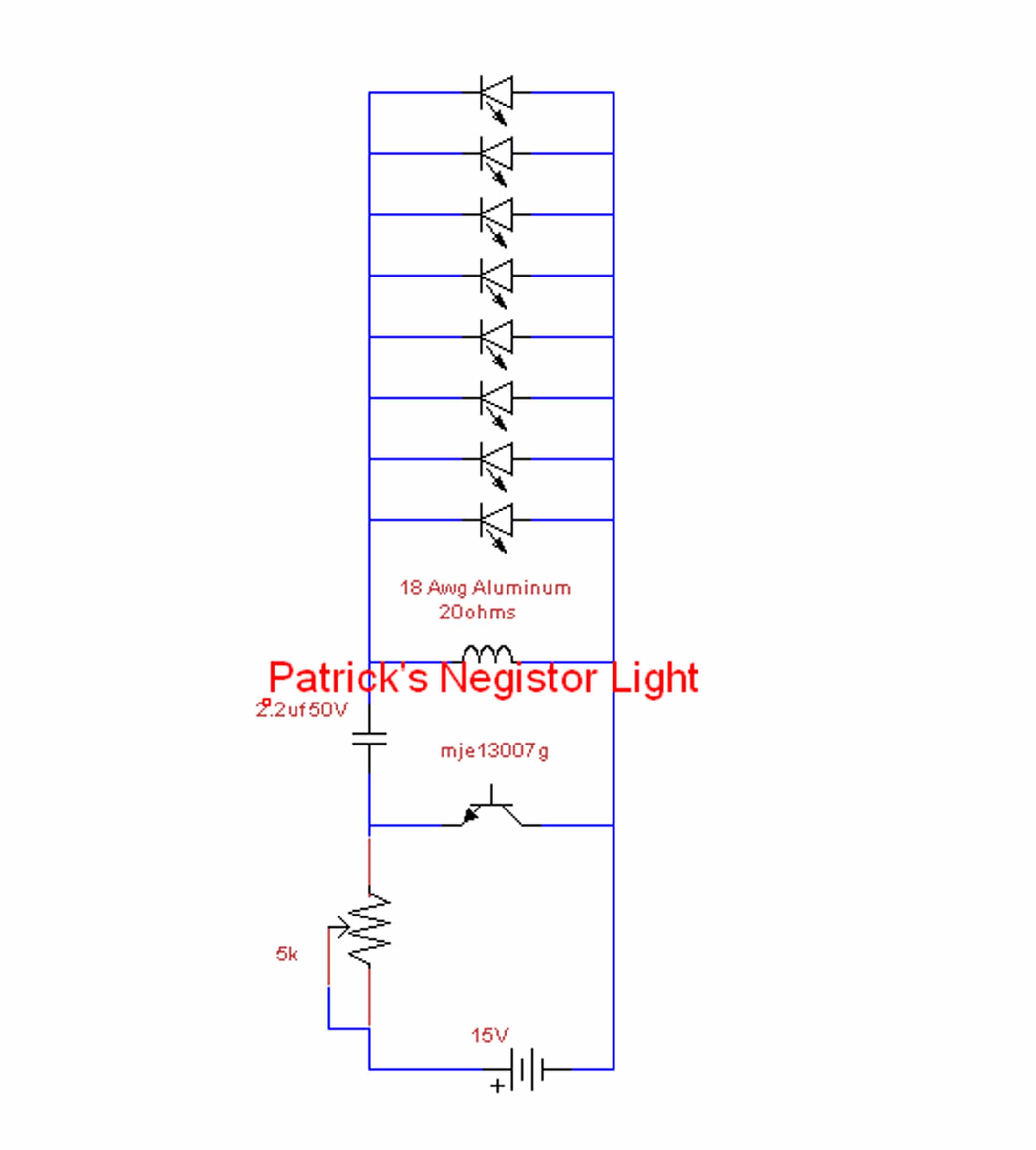

                            Click image for larger version

Name:	Patrick's-Negistor-Light.jpg
Views:	1
Size:	66.3 KB
ID:	46017
                            If I place an amp meter it shows 1.23 mA and the voltage drops accordingly.
                            When I shunt the amp meter, the voltage goes back up.

                            This uses the negistor as I show in an earlier post and vid on this thread.
                            You must adjust/balance either and/or

                            voltage/cap/resistance

                            until you are pulling from the negative region.
                            Keep adding LED's... I've added more than are in the pic w/o increasing amp draw and w/o diminishing the light. The more you add the lower the amp draw to a point - it's all a balance. LCR


                            Patrick

                            Comment


                            • patrick,

                              so you are using an 18 AWG aluminum wire as the coil correct? at 20 ohms length of wire...

                              Tom C


                              experimental Kits, chargers and solar trackers

                              Comment


                              • Originally posted by Tom C View Post
                                patrick,

                                so you are using an 18 AWG aluminum wire as the coil correct? at 20 ohms length of wire...

                                Tom C
                                Hi Tom,
                                That's it, and the 1.23mA is not off the 15 volts, it's off the negative breakdown differential.
                                This can be done w/ almost any coil, I just happen to be playing around w/ the aluminum because of the higher resistance coupled w/ the thick wire. Using the mje's w/ this wire and cap produces a nice spike in the negative zone.
                                It's a very simple little ckt. The 2n2222 works as well as the mjl's and several other npn's.
                                Kind regards,
                                Patrick

                                Comment
